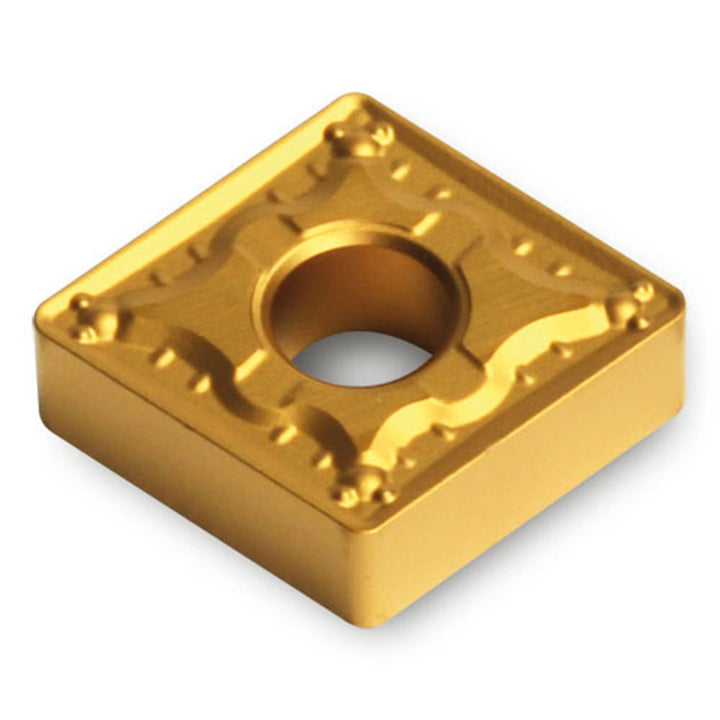

CNMG090404PC TT8115B Solid Carbide Insert, Grade TT8115B, TiCN - Ingersoll Cutting Tools 6241365

Ingersoll Cutting Tools

CNMG090404PC TT8115B Solid Carbide Insert, Grade TT8115B, TiCN - Ingersoll Cutting Tools 6241365

MFR# 6241365ISO/ANSI# CNMG090404PC TT8115BSeries CNMG

$12.10List $15.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT8115B
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 6241365 is a CNMG090404PC TT8115B solid carbide indexable insert, grade TT8115B, TiCN coated. Suited for steel.

Specifications

Ansi codeCNMG331PCTT8115B
Chip breakerPC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG090404PC TT8115B
Manufacturer gradeTT8115B
Maximum depth of cut0.1250
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
