VNMX130408MT TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6241580

Ingersoll Cutting Tools

VNMX130408MT TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6241580

MFR# 6241580ISO/ANSI# VNMX130408MT TT8125BSeries VNMX

$18.09List $22.80 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeTT8125B
MaterialCarbide
CoatingAl2O3

Description

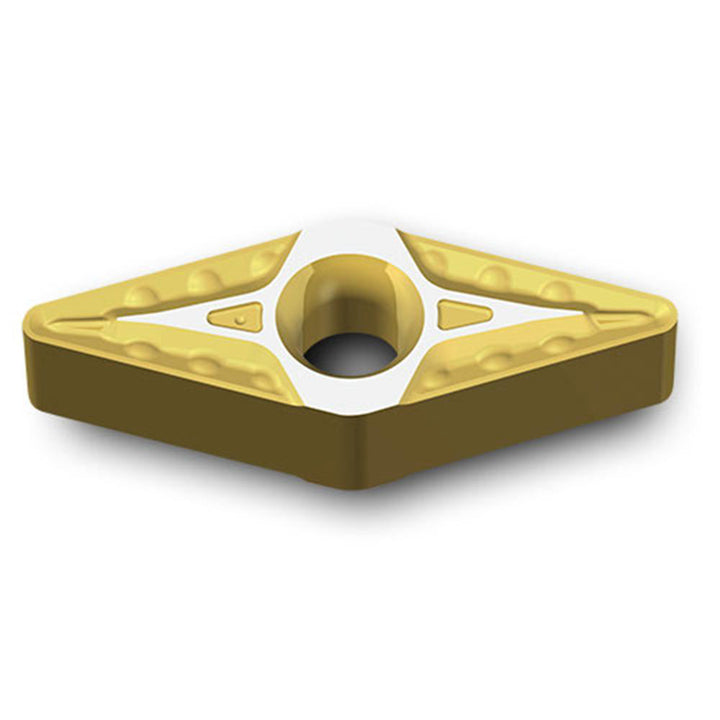

The Ingersoll Cutting Tools 6241580 is a VNMX130408MT TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.

Specifications

Chip breakerMT
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle35
Inscribed circle0.3130
Insert handNeutral
Insert holding methodClamp
Insert length0.5460
Insert materialCarbide
Insert shapeDiamond
Insert size code2.532
Insert styleVNMX
Insert thickness0.1870
Iso codeVNMX130408MT TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.1180
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
