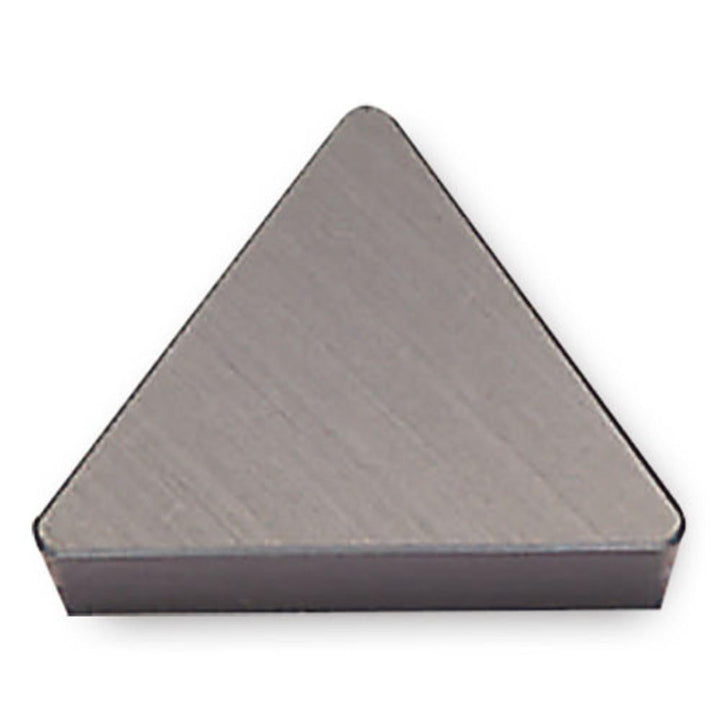

TPGN160308 TT8115B Carbide Insert, Grade TT8115B, Al2O3 - Ingersoll Cutting Tools 6241922

Ingersoll Cutting Tools

TPGN160308 TT8115B Carbide Insert, Grade TT8115B, Al2O3 - Ingersoll Cutting Tools 6241922

MFR# 6241922ISO/ANSI# TPGN160308 TT8115BSeries TPGN

$17.07List $21.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTT8115B
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6241922 is a TPGN160308 TT8115B carbide indexable insert, grade TT8115B, Al2O3 coated. Suited for steel.

Specifications

Chip breakerN
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPGN
Insert thickness in1/8
Iso codeTPGN160308 TT8115B
Manufacturer gradeTT8115B
Maximum depth of cut0.1970
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Tolerance codeG
Width in1
Wiper edgeNo
