Ingersoll Cutting Tools

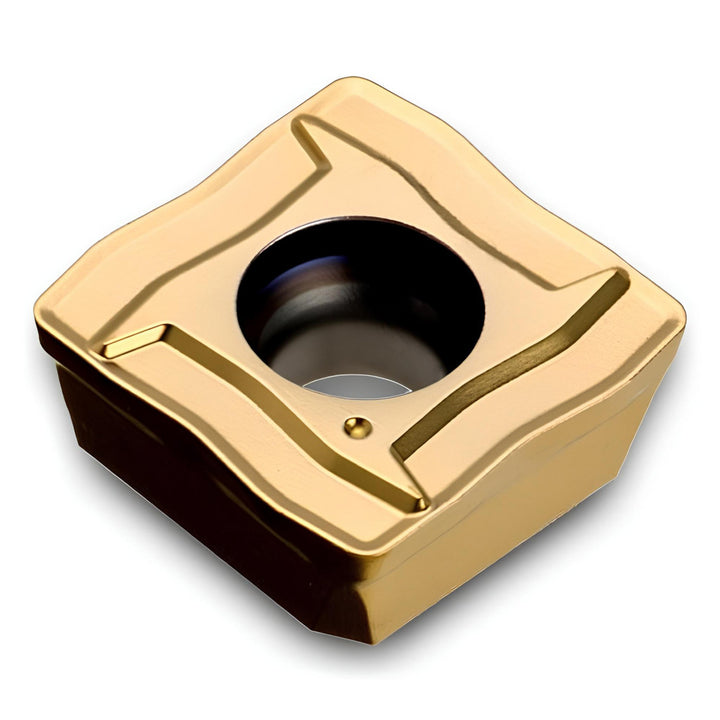

0.3620" IC Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6301092
MFR# 6301092Cat# SOMT09T308PS IN2505Series SOMT
$19.12List $23.65
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIN2505
MaterialCarbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6301092 is a carbide indexable insert, grade IN2505, TiAlN coated.
Specifications
ChipbreakerPS
Coating finishTiAlN
Coating processPVD
Compatible drill styleQR
Corner radius in1/32
Included angle degree90
Inscribed circle0.3620
Insert handNeutral
Insert materialCarbide
Insert size09
Insert size code09T308
Insert styleSOMT
Length0.362
Manufacturers catalog numberSOMT09T308PS IN2505
Manufacturer gradeIN2505
Number of cutting edges4
RakePositive
ShapeSquare
Thickness0.166
Width0.362
