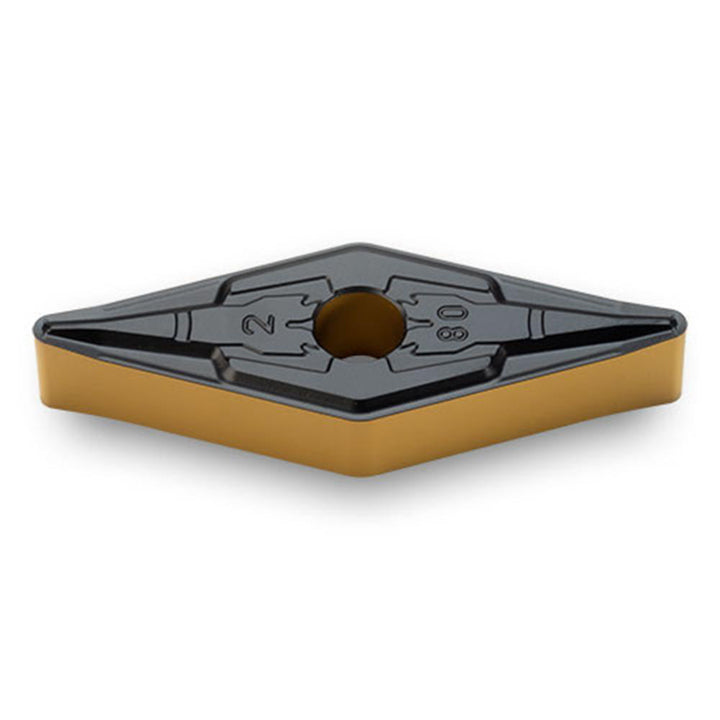

VNMG160408FLP TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6308036

Ingersoll Cutting Tools

VNMG160408FLP TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6308036

MFR# 6308036ISO/ANSI# VNMG160408Series VNMG

$25.20List $31.75 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTT8125B
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6308036 is a VNMG160408FLP TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeVNMG332
Ansi size code332
Chip breakerFLP
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG160408FLP TT8125B
Iso insert codeVNMG160408
Iso size code160408
Manufacturer gradeTT8125B
Maximum depth of cut0.0600
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
