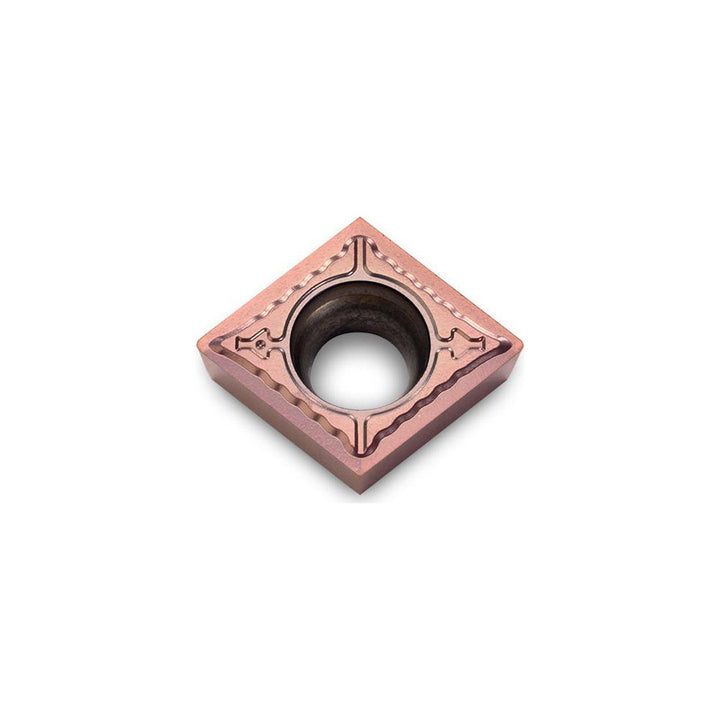

CCGT09T304M-SH-F TT4430 Carbide Insert, Grade TT4430, AlTiCrN - Ingersoll Cutting Tools 6309159

MFR# 6309159ISO/ANSI# CCGT09T304M-SH-F TT4430Series CCGT

$24.60List $31.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT4430
MaterialCarbide
CoatingAlTiCrN

Description

The Ingersoll Cutting Tools 6309159 is a CCGT09T304M-SH-F TT4430 carbide indexable insert, grade TT4430, AlTiCrN coated. Suited for steel, stainless steel, superalloy, titanium.

Specifications

Chip breakerSH
Clearance codeC
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0160
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness0.1560
Iso codeCCGT09T304M-SH-F TT4430
Manufacturer gradeTT4430
Maximum depth of cut0.1380
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeG
Wiper edgeNo
