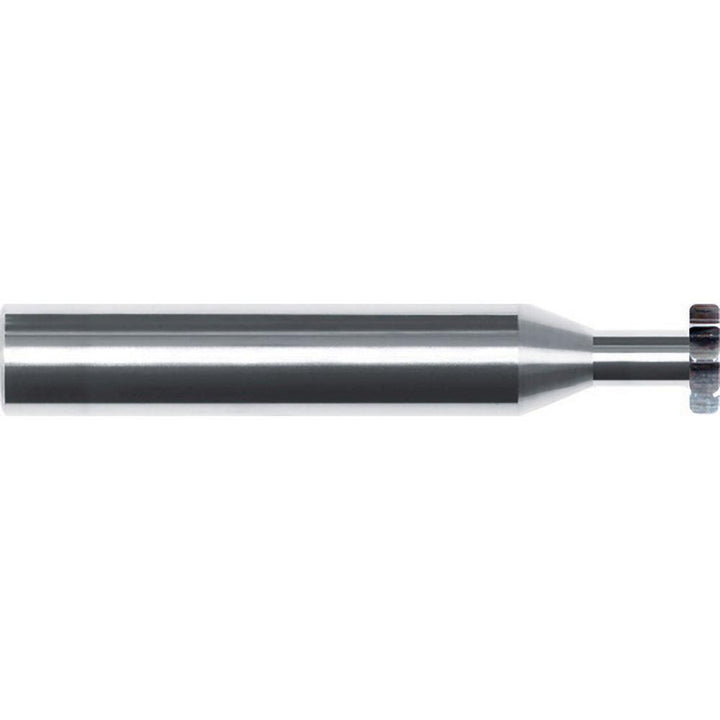

Woodruff/Keyseat Cutters & Sets - Internal Tool 101-1110-C

Internal Tool

Woodruff/Keyseat Cutters & Sets - Internal Tool 101-1110-C

MFR# 101-1110-CSeries 101

$94.64List $121.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.5/16
CoatingAlTiN

Description

The Internal Tool 101-1110-C woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series 101.

Specifications

Coating finishAlTiN
Connection typeShank
Corner radius0.0050
Cutter diameter in5/16
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting width in1/16
Neck diameter0.1500
Neck length0.3120
Number of teeth8
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter in5/16
Tooth configurationStraight
Weldon flatNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
