Internal Tool

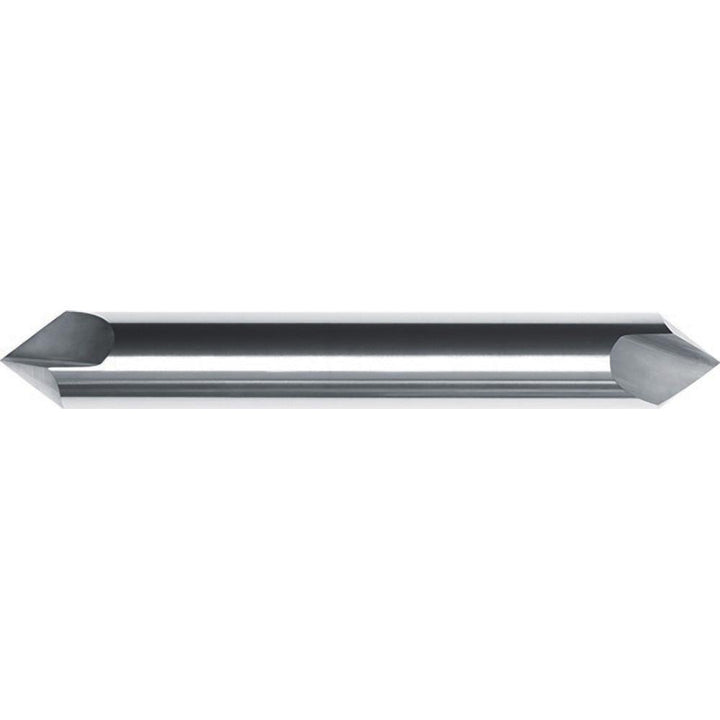

Chamfer Mills & Back Chamfers - Internal Tool 64-1230-C
MFR# 64-1230-CSeries 64
$58.52List $73.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlTiN
Description
The Internal Tool 64-1230-C chamfer mills & back chamfers. Series 64.
Specifications
Chamfer mill materialSolid Carbide
Coating finishAlTiN
Coolant throughNo
Cutter head diameter0.2500
Cutter head diameter frac in1/4
Cutting directionRight Hand
End typeDouble
Included angle82.00
Length of cut0.1400
Material applicationAluminum; Aluminum Alloy; Brass; Bronze; Copper; Cast Iron; Iron; Magnesium; Molybdenum; Monel; Plastic; Steel; Stainless Steel; Titanium; High-Nickel Steel; Copper Alloy; Magnesium Alloy; Nickel Base Alloy; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length in2-1/2
Shank diameter in1/4
Shank length2.2200
TaperedNo
Tool applicationChamfering; Countersinking
