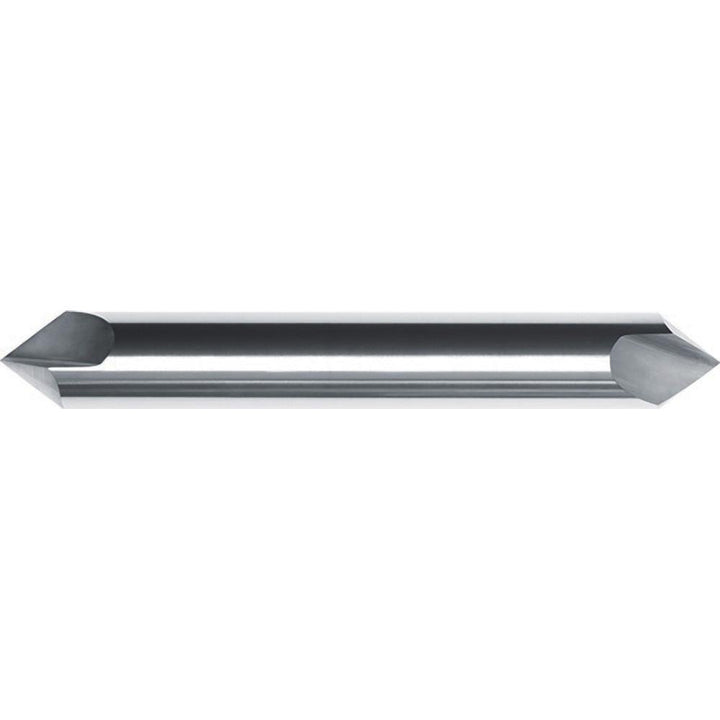

Chamfer Mills & Back Chamfers - Internal Tool 64-1235-C

Internal Tool

Chamfer Mills & Back Chamfers - Internal Tool 64-1235-C

MFR# 64-1235-CSeries 64

$78.43List $100.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlTiN

Description

The Internal Tool 64-1235-C chamfer mills & back chamfers. Series 64.

Specifications

Chamfer mill materialSolid Carbide
Coating finishAlTiN
Coolant throughNo
Cutter head diameter0.3750
Cutter head diameter frac in3/8
Cutting directionRight Hand
End typeDouble
Included angle82.00
Length of cut0.2000
Material applicationAluminum; Aluminum Alloy; Brass; Bronze; Copper; Cast Iron; Iron; Magnesium; Molybdenum; Monel; Plastic; Steel; Stainless Steel; Titanium; High-Nickel Steel; Copper Alloy; Magnesium Alloy; Nickel Base Alloy; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Shank length2.1000
TaperedNo
Tool applicationChamfering; Countersinking
