Chamfer Mills & Back Chamfers - Internal Tool 64-9060

Internal Tool

Chamfer Mills & Back Chamfers - Internal Tool 64-9060

MFR# 64-9060Series 64

$66.61List $85.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

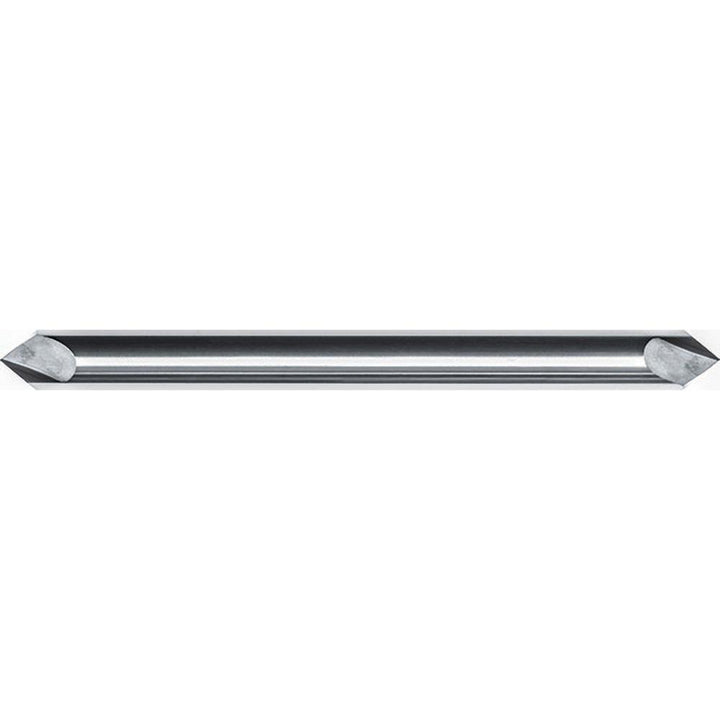

The Internal Tool 64-9060 chamfer mills & back chamfers. Series 64.

Specifications

Chamfer mill materialSolid Carbide
Coolant throughNo
Cutter head diameter0.2500
Cutter head diameter frac in1/4
Cutting directionRight Hand
End typeDouble
Included angle90.00
Length of cut in1/8
Material applicationAluminum; Aluminum Alloy; Brass; Bronze; Copper; Cast Iron; Iron; Magnesium; Molybdenum; Monel; Plastic; Steel; Stainless Steel; Titanium; High-Nickel Steel; Copper Alloy; Magnesium Alloy; Nickel Base Alloy; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes2
Overall length in4
Shank diameter in1/4
Shank length3.7500
TaperedNo
Tool applicationChamfering; Countersinking
