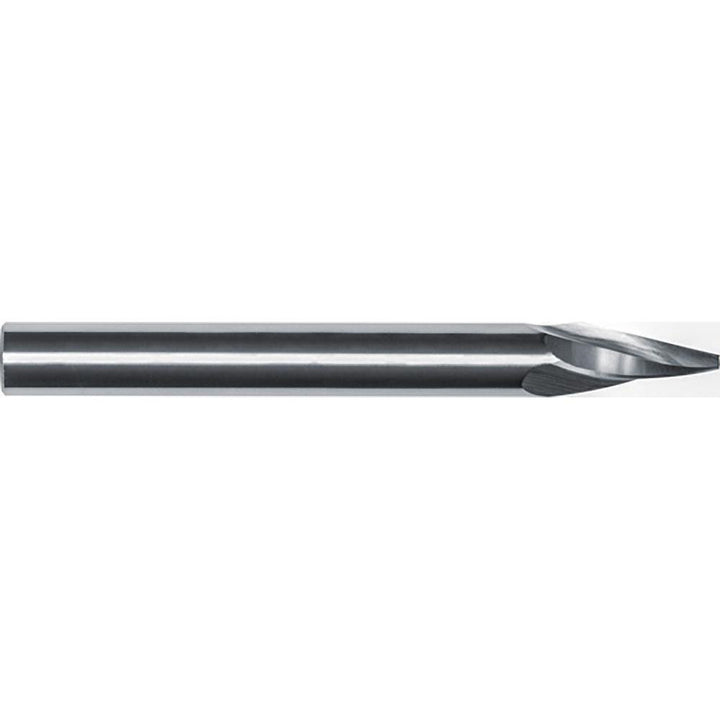

0.2500" 3-Flute Solid Carbide Tapered End Mill - Internal Tool 69-1105

MFR# 69-1105Series 69

$55.47List $71.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Internal Tool 69-1105 is a 0.2500 3-flute Solid Carbide (Micrograin) tapered end mill. Suited for steel, stainless steel, cast iron, super alloys & titanium. 1/2 length of cut, 2-1/2 overall length. Series 69.

Specifications

CentercuttingNo

Coating finishBright/Uncoated

Coolant throughNo

End mill materialSolid Carbide

End shapeTapered

Flute directionRight Hand

Flute typeHelical

Helix angle15

Included angle degree22

Large end diameter0.2500

Length of cut in1/2

Material gradeMicrograin

Mill diameter0.2500

Number of flutes3

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Super Alloys & Titanium

Shank diameter in1/4

Small end diameter in1/16

Small end diameter tolerance+0.0000/-0.0030 in

Taper angle per side11.00

Tip diameter0.0620
