Internal Tool

0.3750" 3-Flute Solid Carbide Tapered End Mill, Natural - Internal Tool 69-4060

MFR# 69-4060Series 69

$93.52List $119.94 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingNatural

Description

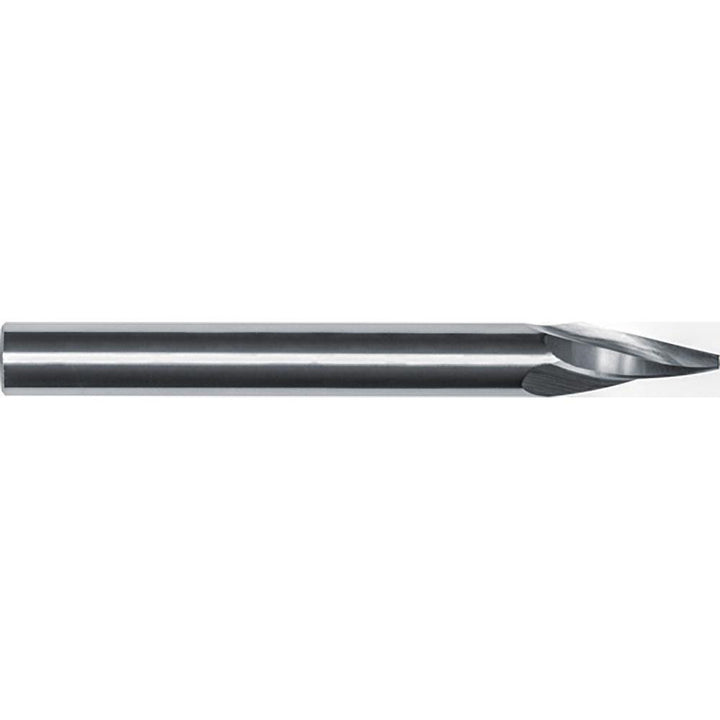

The Internal Tool 69-4060 is a 0.3750 3-flute Solid Carbide (Micrograin) tapered end mill with a Natural finish for longer tool life. Suited for steel, stainless steel, cast iron, super alloys & titanium. 2-1/2 overall length. Series 69.

Specifications

CentercuttingNo

Coating finishNatural

Coolant throughNo

End mill materialSolid Carbide

End shapeTapered

Flute directionRight Hand

Flute typeHelical

Helix angle15

Included angle degree30

Large end diameter0.3750

Length of cut0.4670

Material gradeMicrograin

Mill diameter0.3750

Number of flutes3

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Super Alloys & Titanium

Shank diameter in3/8

Small end diameter in1/8

Taper angle per side15.00

Tip diameter0.1250
