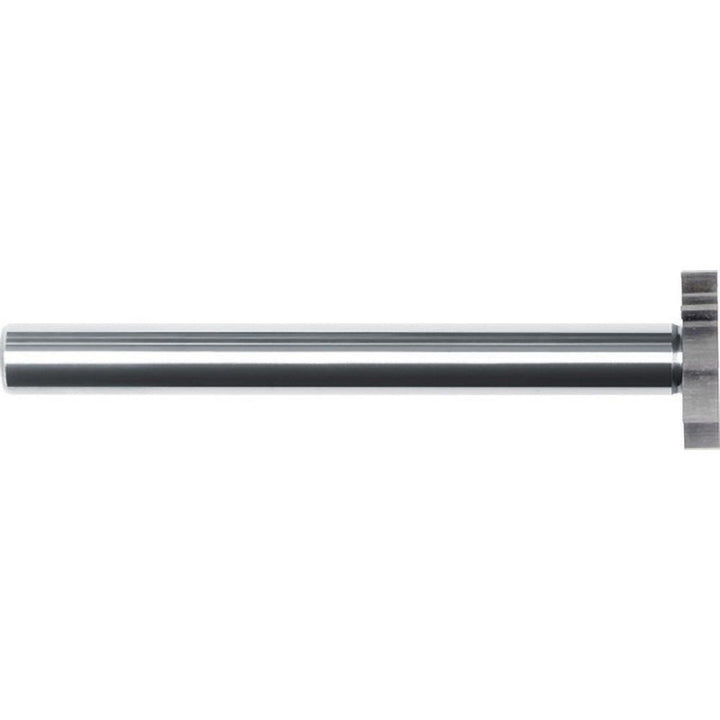

Woodruff/Keyseat Cutters & Sets - Internal Tool 76-9025-C

Internal Tool

Woodruff/Keyseat Cutters & Sets - Internal Tool 76-9025-C

MFR# 76-9025-CSeries 76

$116.93List $149.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.1/2
CoatingAlTiN

Description

The Internal Tool 76-9025-C woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series 76.

Specifications

Coating finishAlTiN
Connection typeShank
Cutter diameter in1/2
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting width in1/32
Neck diameter0.2400
Neck length0.2500
Number of teeth10
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter in1/4
Tooth configurationStraight
Weldon flatNo
