Internal Tool

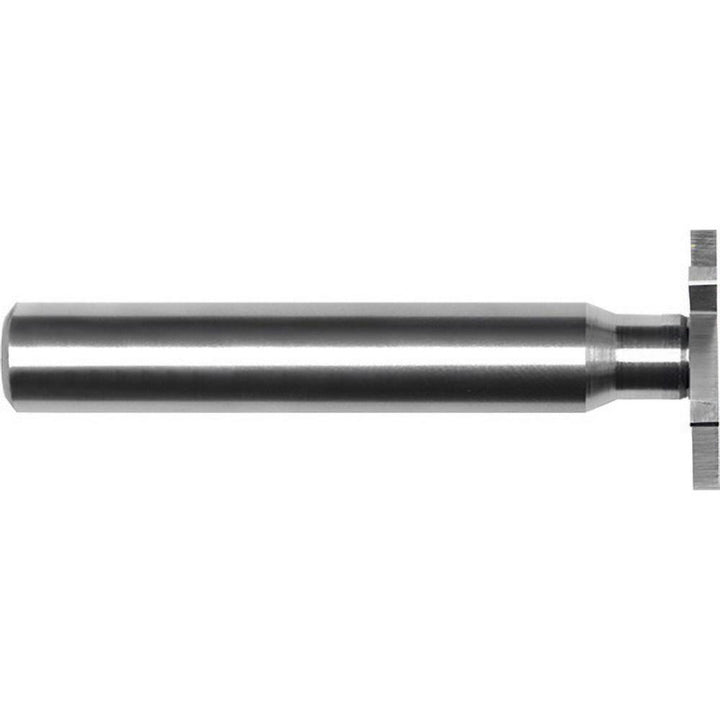

Woodruff/Keyseat Cutters & Sets - Internal Tool 78-1490
MFR# 78-1490Series 78
$185.59List $238.03
Save 22%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1-1/2
Description
The Internal Tool 78-1490 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series 78.
Specifications
Connection typeShank
Cutter diameter in1-1/2
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting width in1/4
Neck diameter0.4300
Neck length0.2500
Number of teeth16
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter in1/2
Tooth configurationStraight
Weldon flatNo
