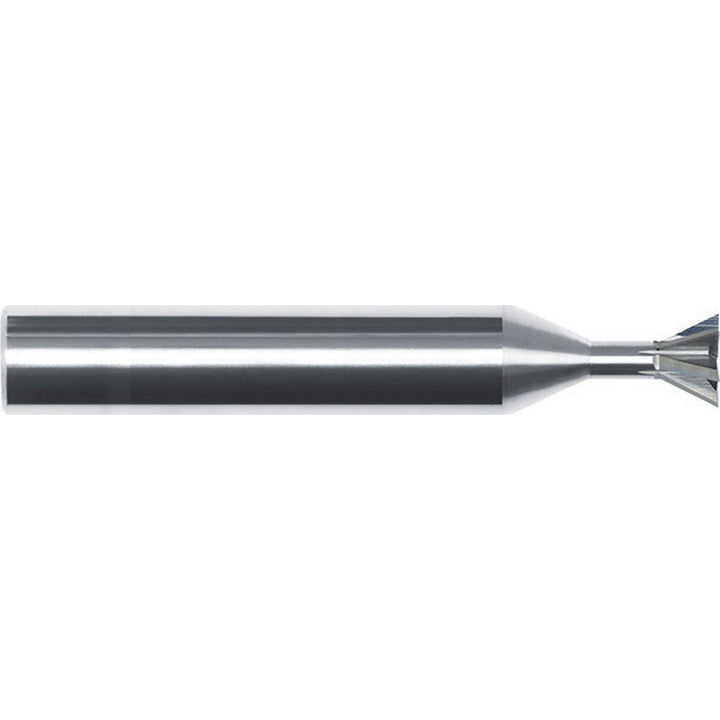

Dovetail Cutters & Sets - Internal Tool 86-1110

Internal Tool

Dovetail Cutters & Sets - Internal Tool 86-1110

MFR# 86-1110Series 86

$86.04List $110.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.3/8

Description

The Internal Tool 86-1110 dovetail cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, super alloys & titanium. Series 86.

Specifications

Cutter diameter in3/8
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting directionRight Hand
Cutting width0.0800
Included angle60
Maximum cutter diameter0.3750
Minimum cutter diameter0.1600
Neck diameter0.1600
Neck length0.2500
Number of teeth5
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Super Alloys & Titanium
Shank diameter in3/8
Shank length2.1700
Weldon flatNo
