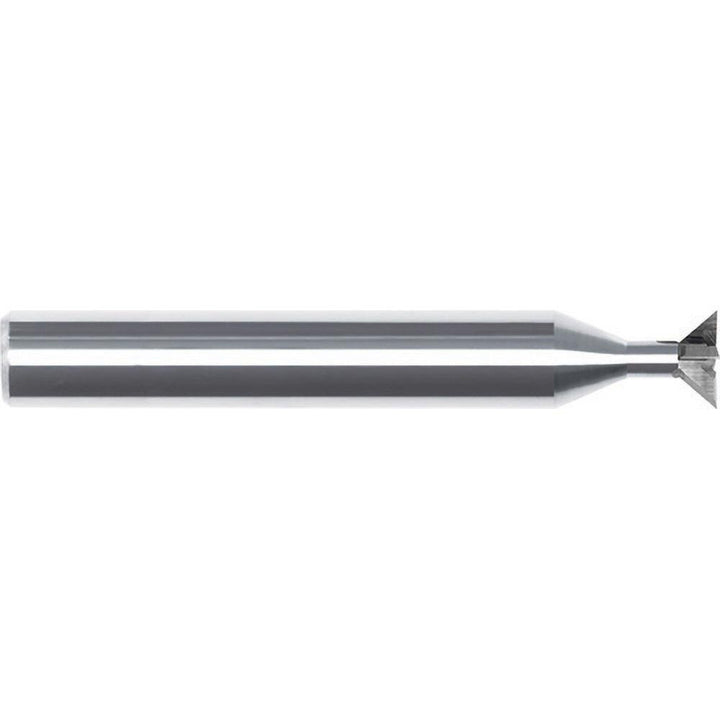

Dovetail Cutters & Sets - Internal Tool 86-1120-C

Internal Tool

Dovetail Cutters & Sets - Internal Tool 86-1120-C

MFR# 86-1120-CSeries 86

$78.32List $100.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.3/16
CoatingAlTiN

Description

The Internal Tool 86-1120-C dovetail cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, super alloys & titanium. Series 86.

Specifications

Coating finishAlTiN
Cutter diameter in3/16
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting directionRight Hand
Cutting width0.0450
Included angle90
Maximum cutter diameter0.1875
Minimum cutter diameter0.0900
Neck diameter0.0900
Neck length0.2500
Number of teeth3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Super Alloys & Titanium
Shank diameter in3/16
Shank length2.2050
Weldon flatNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
