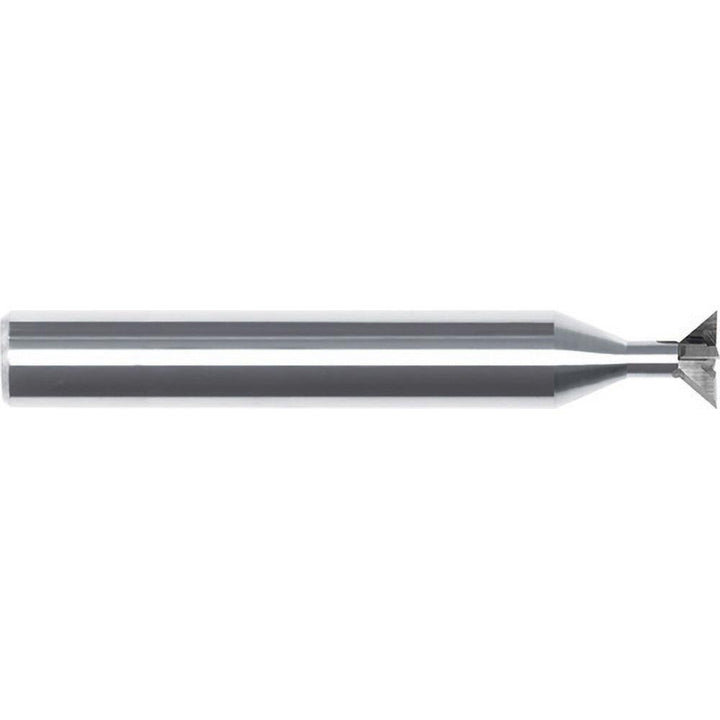

Dovetail Cutters & Sets - Internal Tool 86-1125-C

Internal Tool

Dovetail Cutters & Sets - Internal Tool 86-1125-C

MFR# 86-1125-CSeries 86

$86.41List $110.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.1/4
CoatingAlTiN

Description

The Internal Tool 86-1125-C dovetail cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, super alloys & titanium. Series 86.

Specifications

Coating finishAlTiN
Cutter diameter in1/4
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting directionRight Hand
Cutting width0.0620
Included angle90.00
Maximum cutter diameter0.2500
Minimum cutter diameter0.1150
Neck diameter0.1150
Neck length0.2500
Number of teeth3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Super Alloys & Titanium
Shank diameter in1/4
Shank length2.1880
Weldon flatNo
