Dovetail Cutters & Sets - Internal Tool 86-6040

Internal Tool

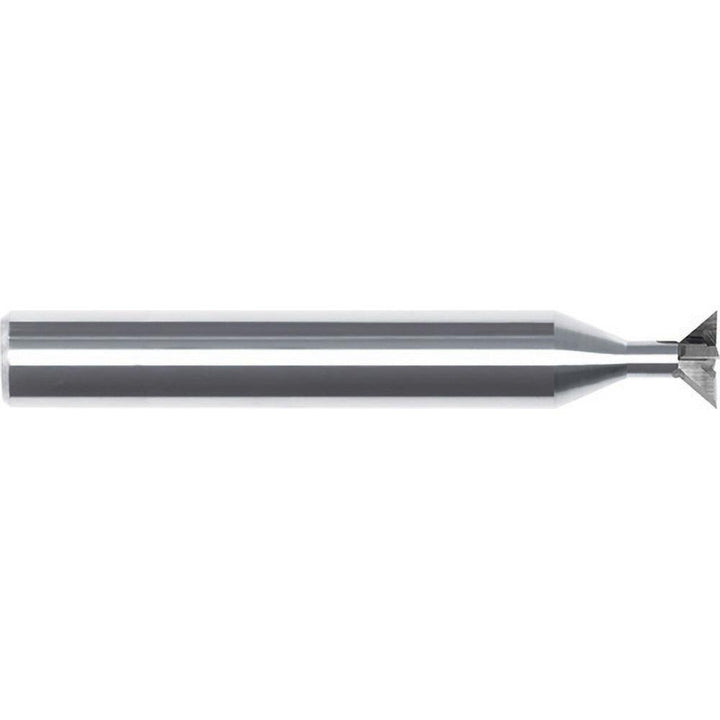

Dovetail Cutters & Sets - Internal Tool 86-6040

MFR# 86-6040Series 86

$146.21List $187.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.3/4

Description

The Internal Tool 86-6040 dovetail cutters & sets. Suited for steel, stainless steel, cast iron, non-ferrous metal, super alloys & titanium. Series 86.

Specifications

Corner radius0.0050
Cutter diameter in3/4
Cutter materialSolid Carbide
Cutter material gradeMicrograin
Cutting directionRight Hand
Cutting width0.2300
Included angle90
Maximum cutter diameter0.7500
Minimum cutter diameter0.2900
Neck diameter0.2900
Neck length0.2500
Number of teeth6
Overall length in4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Super Alloys & Titanium
Shank diameter in3/4
Shank length3.5200
Weldon flatNo
