Iscar

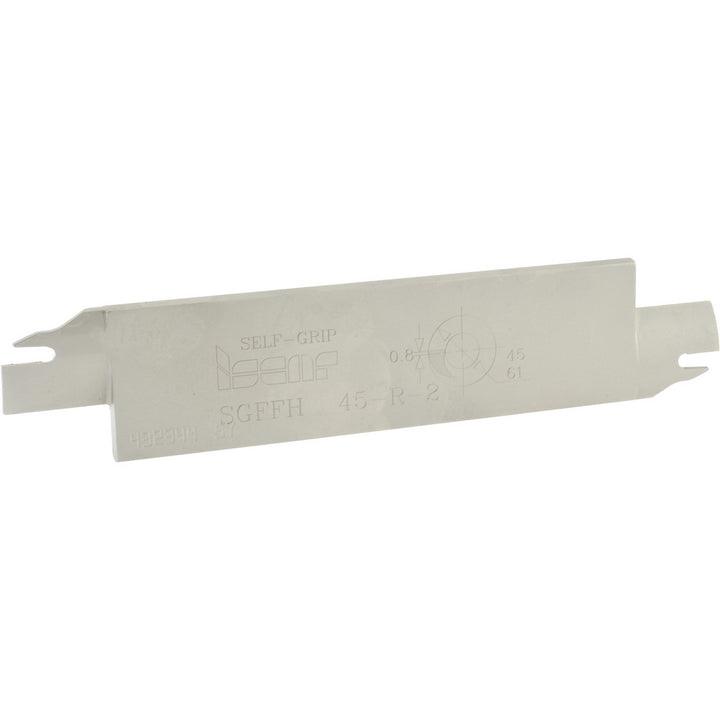

Indexable Cut-Off - Iscar 2300304
MFR# 2300304Series Self Grip
$252.95List $261.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300304 indexable cut-off. Series Self Grip.
Specifications
Blade height1.2598
Blade overall length5.9055
Blade styleSGFFH
Blade width0.2047
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
HandRight Hand
Insert holding methodSelf Grip
Insert styleGFF-N
Insert width0.0827
Insert width (mm)2.10
Maximum depth of cut0.7874
Maximum insert width0.0830
Maximum workpiece diameter2.4000
Minimum insert width0.0827
Minimum workpiece diameter1.7700
StandardsISO 13399
