Iscar

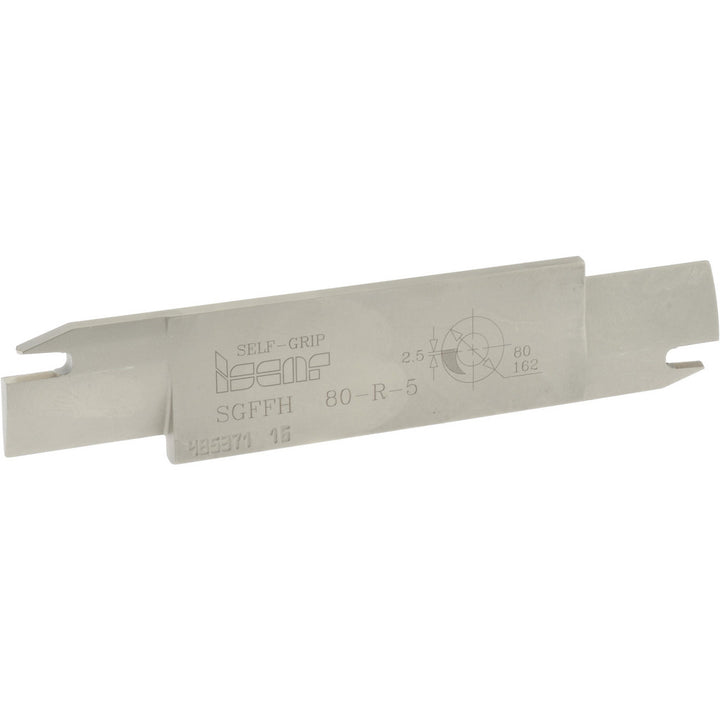

Indexable Cut-Off - Iscar 2300322
MFR# 2300322Series Self Grip
$252.95List $261.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300322 indexable cut-off. Series Self Grip.
Specifications
Blade height1.2598
Blade overall length5.9055
Blade styleSGFFH
Blade width0.2047
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
HandRight Hand
Insert holding methodSelf Grip
Insert styleGFF-N
Insert width0.1969
Insert width (mm)5.00
Maximum depth of cut1.2598
Maximum insert width0.1970
Maximum workpiece diameter6.3800
Minimum insert width0.1969
Minimum workpiece diameter3.1500
StandardsISO 13399
