Iscar

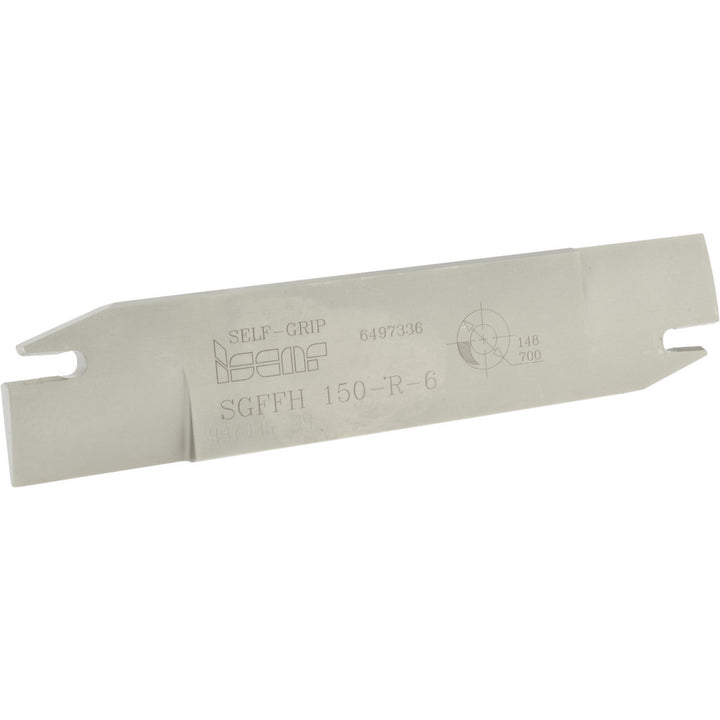

Indexable Cut-Off - Iscar 2300328
MFR# 2300328Series Self Grip
$282.26List $286.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300328 indexable cut-off. Series Self Grip.
Specifications
Blade height1.2598
Blade overall length5.9055
Blade styleSGFFH
Blade width0.2047
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
HandRight Hand
Insert holding methodSelf Grip
Insert styleGFF-N
Insert width0.2362
Insert width (mm)6.00
Maximum depth of cut1.3780
Maximum insert width0.2360
Maximum workpiece diameter27.5600
Minimum insert width0.2362
Minimum workpiece diameter5.8300
StandardsISO 13399
