Iscar

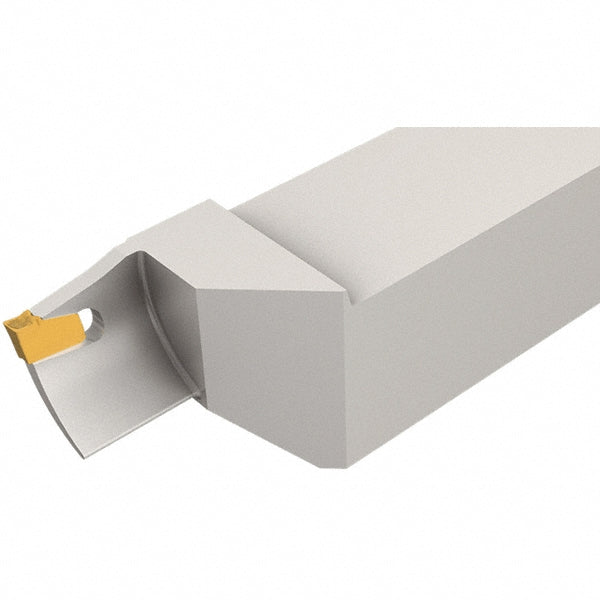

Indexable Grooving - Iscar 2300380
MFR# 2300380Series Self-Grip
$274.25List $283.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300380 indexable grooving. Suited for universal. Series Self-Grip.
Specifications
Compatible insert size codeGFF 2N
Complete insert compatibilityGFF 2R
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityGFF 2R
Insert holding methodWedge
Internal or externalInternal
Maximum depth of cut0.5118
Maximum groove outside diameter (mm)30.00
Maximum groove width0.0827
Maximum workpiece diameter1.1800
Minimum axial groove inside diametermm25.00
Minimum groove width0.0827
Multi use toolNo
Overall length5.1181
Primary workpiece materialUniversal
Shank height0.9843
Shank width diameter0.9843
StandardsISO 13399
Toolholder styleSGFF
Toolholder typeFace Grooving
