Iscar

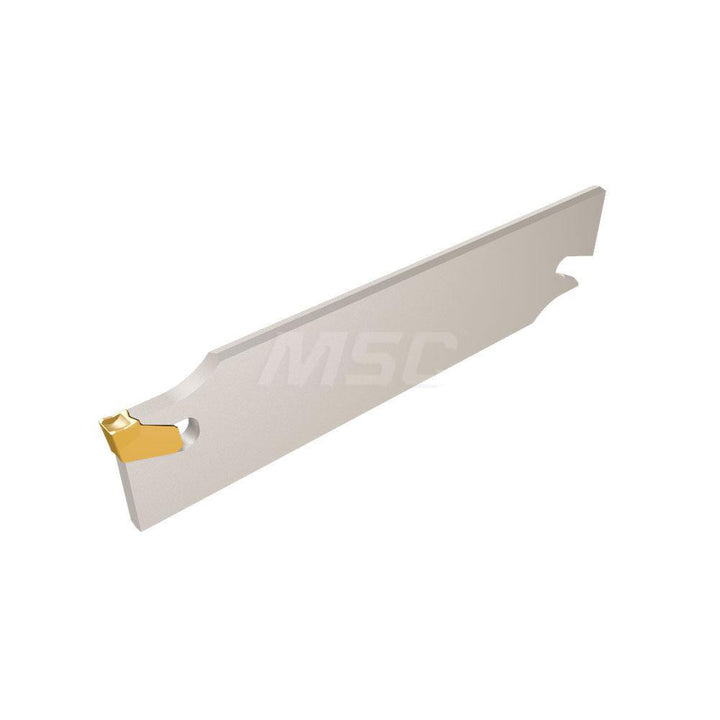

Indexable Cut-Off - Iscar 2300509
MFR# 2300509Cat# SGFH 19-2Series Self Grip
$132.09List $136.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300509 indexable cut-off. Series Self Grip.
Specifications
Blade height0.7480
Blade overall length3.3858
Blade styleSGFH
Blade width0.0630
Complete insert compatibilityGF.. 2..; GF.. 2.4
Cutting directionRight Hand
Cutting height0.6181
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
HandRight Hand
Insert holding methodSelf Grip
Insert width0.0787
Insert width (mm)2.00
Manufacturers catalog numberSGFH 19-2
Maximum insert width0.1059
Maximum workpiece diameter in1-1/2
Minimum insert width0.0709
StandardsISO 13399
