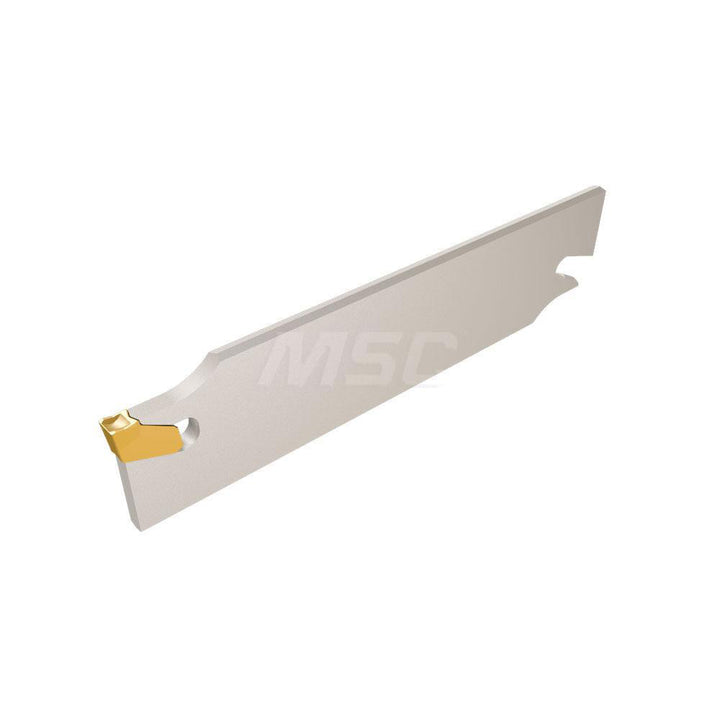

Indexable Cut-Off - Iscar 2300514
MFR# 2300514Cat# SGFH 26-3Series Self Grip
$163.57List $168.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300514 indexable cut-off. Series Self Grip.
Specifications
Blade height1.0236
Blade overall length4.3307
Blade styleSGFH
Blade width0.0945
Cutting directionRight Hand
Cutting height0.8425
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
HandRight Hand
Insert holding methodSelf Grip
Insert styleGF.. 3
Insert width0.1181
Insert width (mm)3.00
Manufacturers catalog numberSGFH 26-3
Maximum insert width0.1390
Maximum workpiece diameter2.9500
Minimum insert width0.1063
StandardsISO 13399
