Iscar

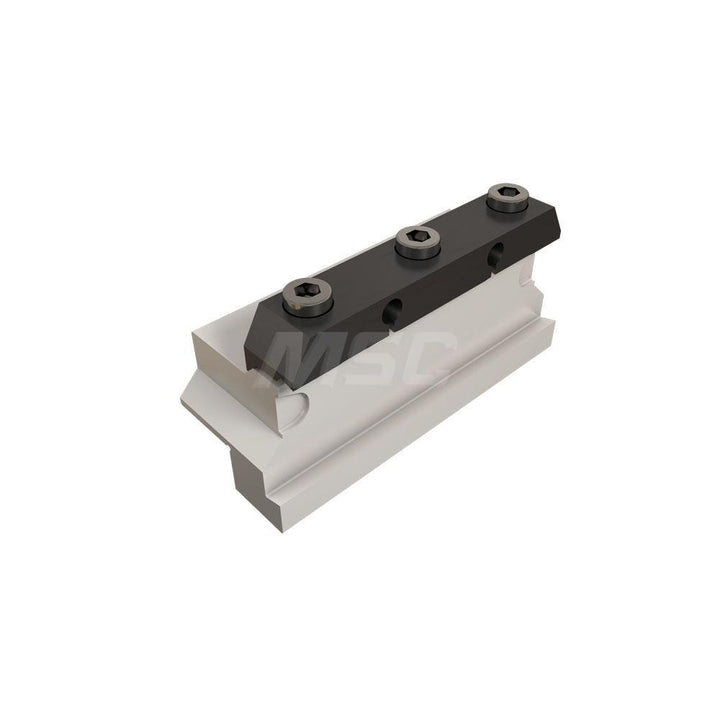

Indexable Cut-Off - Iscar 2300774
MFR# 2300774Series Tool Blocks
$758.85List $783.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300774 indexable cut-off. Series Tool Blocks.
Specifications
Compatible blade height2.0700
Compatible blade width0.3100
Coolant throughYes
Cutting height1.5000
Cutting tool applicationGrooving; Parting; Turning
Head length projection0.3100
ModularYes
Overall height3.2000
Overall length5.1200
Overall width2.5200
ReversibleYes
Shank height1.5000
Shank width1.5400
Shoulder height0.9400
Tool block styleSGTBU
