Iscar

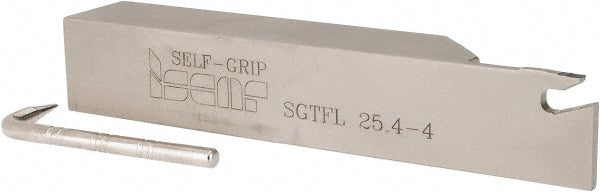

Indexable Cut-Off - Iscar 2300815
MFR# 2300815Cat# SGTFL 25.4-4Series Self Grip
$227.57List $235.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300815 indexable cut-off. Series Self Grip.
Specifications
Back of bar to cutting edge1.0000
Blade width0.1250
Compatible insert size codeGFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderLeft
Head height in1
Insert holding methodSelf Grip
Manufacturers catalog numberSGTFL 25.4-4
Maximum insert width0.1780
Maximum workpiece diameter2.5000
Minimum insert width0.1390
Overall length5.9000
Shank height1.0000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleSGTF
