Iscar

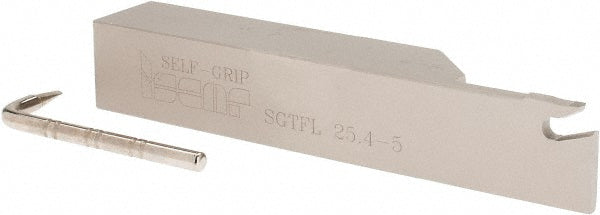

Indexable Cut-Off - Iscar 2300817
MFR# 2300817Cat# SGTFL 25.4-5Series Self Grip
$231.60List $235.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300817 indexable cut-off. Series Self Grip.
Specifications
Back of bar to cutting edge1.0000
Blade width0.1570
Compatible insert size codeGFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderLeft
Head height in1
Insert holding methodSelf Grip
Manufacturers catalog numberSGTFL 25.4-5
Maximum insert width0.2170
Maximum workpiece diameter in3
Minimum insert width0.1780
Overall length5.9000
Shank height1.0000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleSGTF
