Iscar

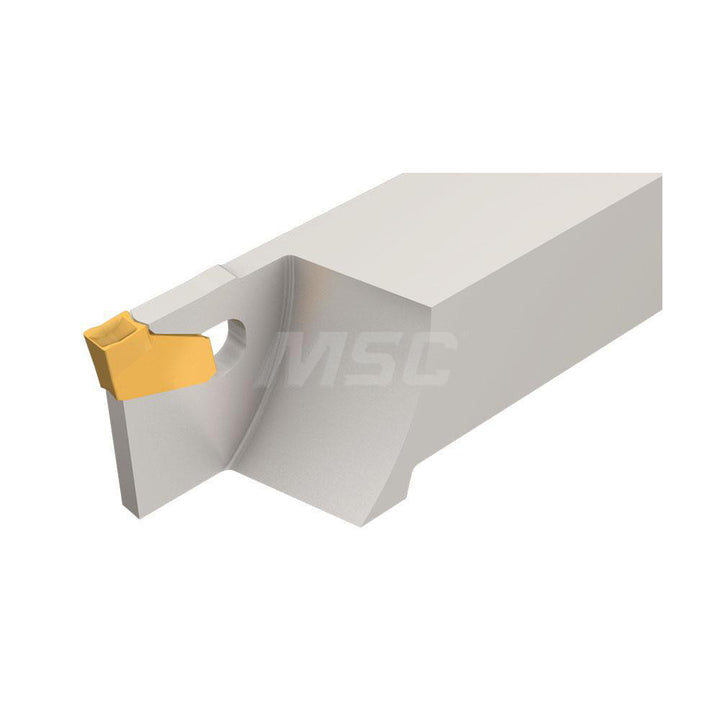

Indexable Cut-Off - Iscar 2300833
MFR# 2300833Cat# SGTFR12.7-1.6Series Self Grip
$175.10List $180.40
Save 2%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300833 indexable cut-off. Series Self Grip.
Specifications
Back of bar to cutting edge0.5000
Blade width0.0470
Compatible insert size codeGFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderRight
Head height in1/2
Insert holding methodSelf Grip
Manufacturers catalog numberSGTFR12.7-1.6
Maximum insert width0.0630
Maximum workpiece diameter1.1800
Minimum insert width0.0630
Msc manufacturer numberSGTFR/L 12.7-1.6
Overall length4.3000
Shank height0.5000
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleSGTF
