Iscar

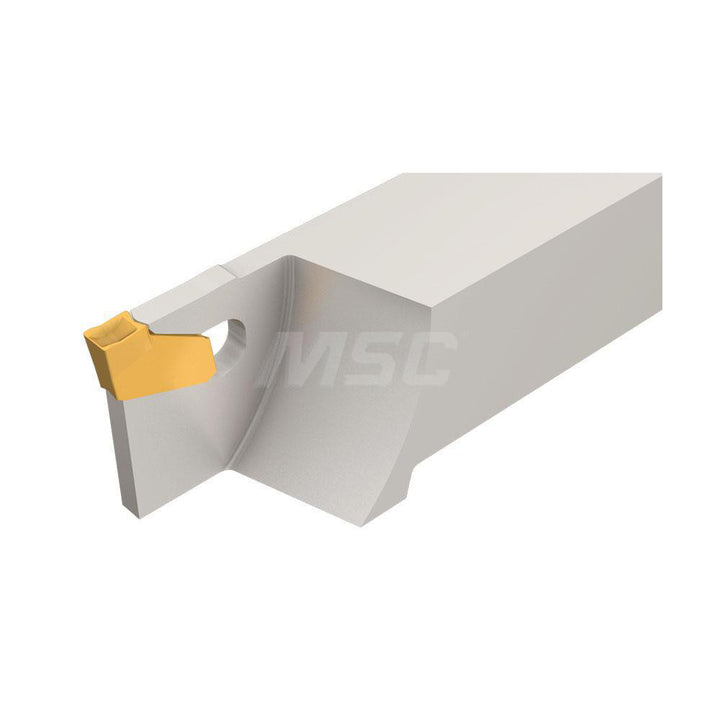

Indexable Cut-Off - Iscar 2300849
MFR# 2300849Cat# SGTFR19-3Series Self Grip
$212.27List $219.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2300849 indexable cut-off. Series Self Grip.
Specifications
Back of bar to cutting edge0.7500
Blade width0.0940
Compatible insert size codeGFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderRight
Head height in3/4
Insert holding methodSelf Grip
Manufacturers catalog numberSGTFR19-3
Maximum insert width0.1390
Maximum workpiece diameter1.7500
Minimum insert width0.1060
Msc manufacturer numberSGTFR/L 19-3
Overall length4.5000
Shank height0.7500
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleSGTF
