Iscar
Indexable Cut-Off - Iscar 2300935
MFR# 2300935Series Self Grip
$227.57List $235.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

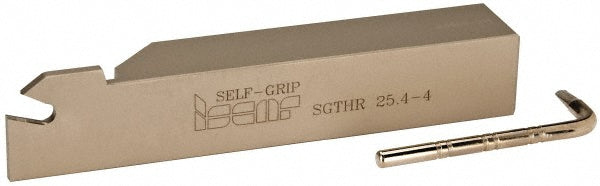

The Iscar 2300935 indexable cut-off. Series Self Grip.
Specifications
Back of bar to cutting edge1.0000
Blade width0.1250
Compatible insert size codeGTN 4..; GTR 4..
Coolant throughNo
Cutting tool applicationCut-Off
Hand of holderRight
Head height1.1800
Head length1.1000
Insert holding methodSelf Grip
Maximum depth of cut1.1000
Maximum insert width0.1610
Maximum workpiece diameter2.4400
Minimum insert width0.1610
Msc manufacturer numberSGTHR 25.4-4
Overall length5.9000
Shank height1.0000
Shank length in1
Shank width diameter1.0000
Toolholder styleSGTH
