Iscar

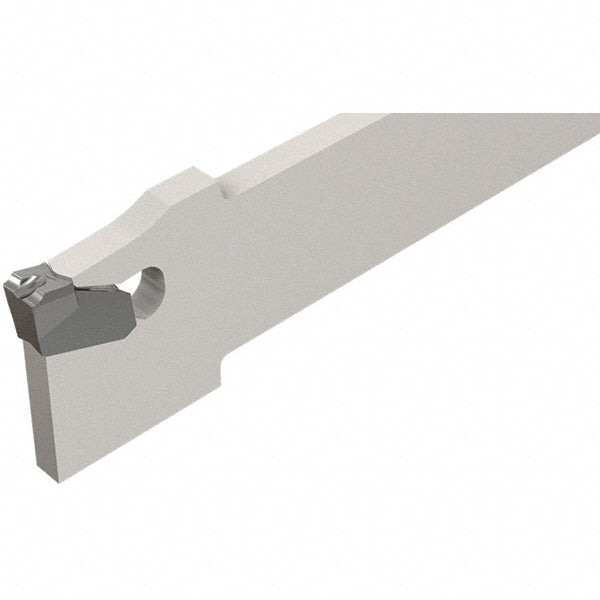

Indexable Grooving - Iscar 2301052
MFR# 2301052Series Self-Grip
$190.00List $196.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301052 indexable grooving. Series Self-Grip.
Specifications
Blade height0.6732
Blade styleSGFS
Blade width0.0630
Compatible insert styleGFN-A; GFN-C; GFN-J; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W
Complete insert compatibilityGFL 2J - 6D; GFL 2JS - 4D; GFN 2.4J; GFN 2A; GFN 2J; GFN 2W; GFR 2J - 6D; GFR 2JS - 4D; GFR 2JS - 6D; GFR 2W - 6D
Cutting directionNeutral
Cutting tool applicationGrooving; Parting; Turning
Insert holding methodSelf Grip
Maximum groove width0.1059
Maximum workpiece diameter1.3780
Minimum groove width0.0709
Overall length4.3307
StandardsISO 13399
