Iscar

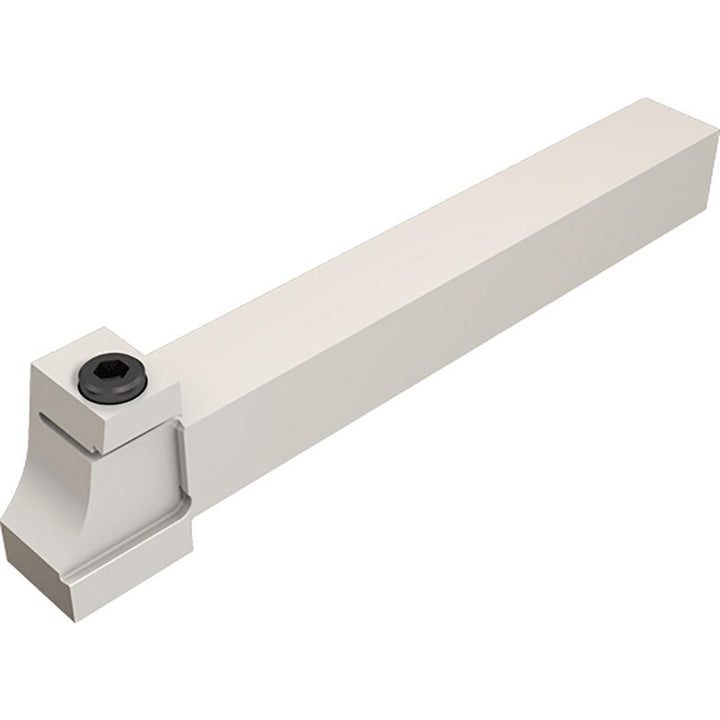

Indexable Cut-Off - Iscar 2301172
MFR# 2301172Series Self-Grip
$177.79List $180.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301172 indexable cut-off. Series Self-Grip.
Specifications
Compatible blade height0.7480
Complete blade compatibilitySGB 19-1.2; SGB 19-1.6; SGB 19-2; SGB 19-3; SGB 19L-4; TGFH 19-2S; TGFH 19-3S
Complete insert compatibilityGFL 1.6 - 8D; GFL 1.6 -15D; GFL 1.6J - 6D; GFL 1.6JS- 6D; GFL 1.6JS-15D; GFN 1.6; GFN 1.6A; GFN 1.6J; GFR 1.6 - 8D; GFR 1.6 -15D; GFR 1.6JS- 6D; GFR 1.6JS-15D; GFR 1.6S - 8D
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Head length projection (mm)20.00
Maximum depth of cut0.6299
ModularNo
Overall length5.9055
ReversibleNo
Shank height0.4724
Shank width0.4724
Shoulder height (mm)8.00
Tool block styleSGBH
