Iscar

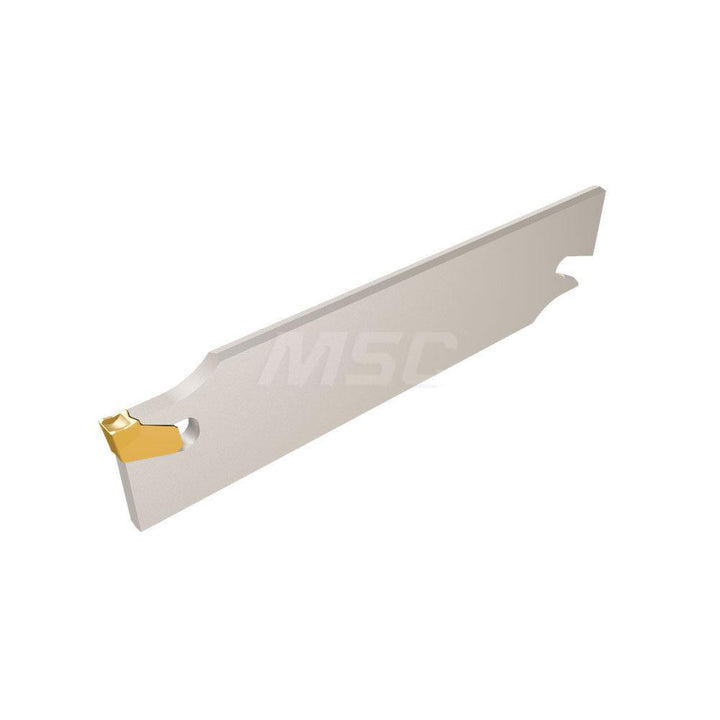

Indexable Cut-Off - Iscar 2301187
MFR# 2301187Cat# SGFH 45-6Series Self Grip
$315.89List $326.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301187 indexable cut-off. Series Self Grip.
Specifications
Blade height1.7717
Blade overall length8.8583
Blade styleSGFH
Blade width0.2047
Cutting directionNeutral
Cutting height1.4961
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
Insert holding methodSelf Grip
Insert seat size6
Insert width0.2520
Insert width (mm)6.40
Manufacturers catalog numberSGFH 45-6
Maximum insert width0.2520
Maximum workpiece diameter6.3000
Minimum insert width0.2520
StandardsISO 13399
Tool block styleSGTBU
