Iscar

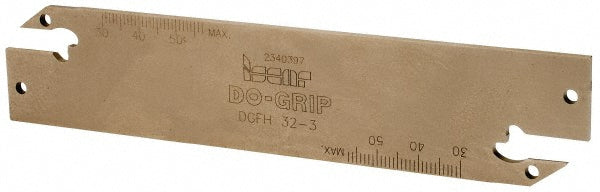

Indexable Cut-Off - Iscar 2301245
MFR# 2301245Cat# DGFH 32-3Series Do-Grip; Heli-Grip
$161.24List $163.60
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301245 indexable cut-off. Series Do-Grip; Heli-Grip.
Specifications
Blade height1.2598
Blade overall length5.9055
Blade styleDGFH
Blade width0.0945
Compatible insert styleDG. 1/DG. 3
Cutting directionNeutral
Cutting height0.9764
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
Insert holding methodSelf Grip
Insert styleDG.1..; DG.3..
Manufacturers catalog numberDGFH 32-3
Maximum insert width0.1252
Maximum workpiece diameter1.5400
Minimum insert width0.1181
StandardsISO 13399
