Indexable Grooving - Iscar 2301280

Iscar

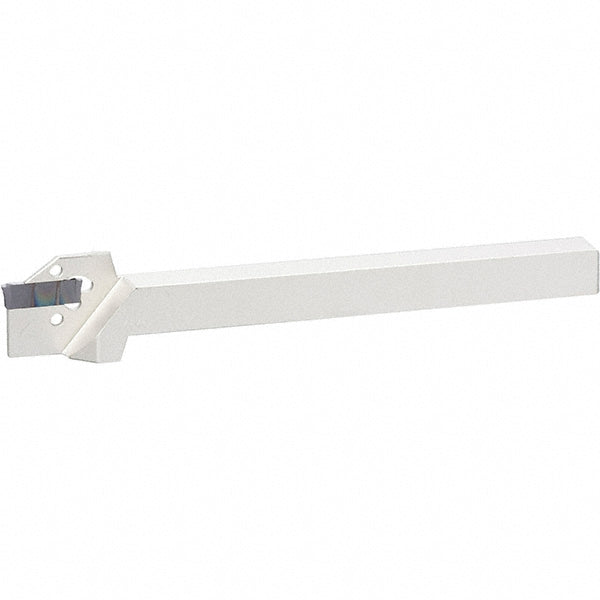

Indexable Grooving - Iscar 2301280

MFR# 2301280Series Do-Grip

$160.46List $165.70 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301280 indexable grooving. Series Do-Grip.

Specifications

Complete insert compatibilityDGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202LF; DGN 2502C; DGR 2200JS-15D; DGR 2200JS-6D; DGR 2202C-6D
Coolant throughNo
Full radius insertNo
Hand of holderRight Hand
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6900
Maximum groove width0.0980
Minimum groove width0.0750
Overall length4.5000
Shank height0.3750
Shank width diameter0.3750
Toolholder styleDGT
