Iscar

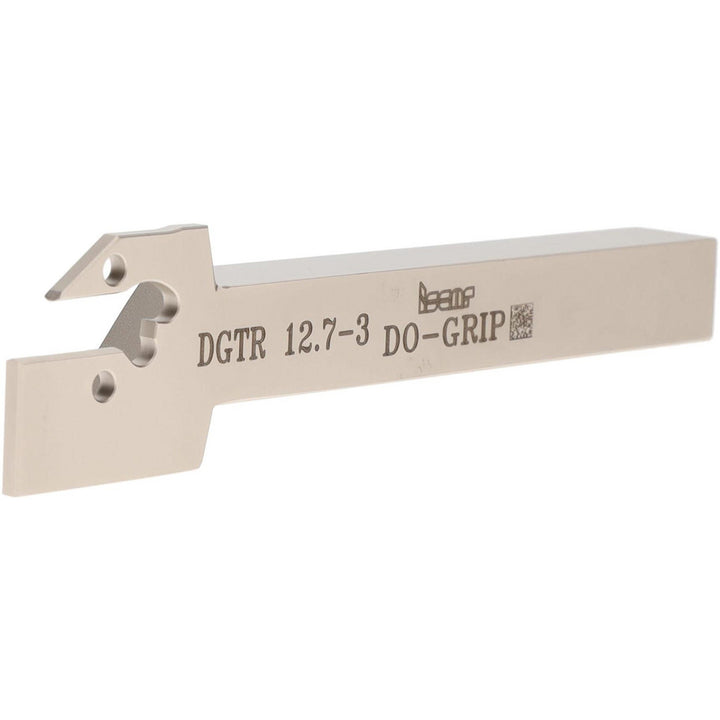

Indexable Grooving - Iscar 2301284
MFR# 2301284Series Do-Grip
$160.46List $165.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301284 indexable grooving. Series Do-Grip.
Specifications
Compatible insert size codeDGN-LF/LFT; DGN-MF; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-P; DGR-WP; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Complete insert compatibilityDGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGLC 3102C-6D; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3102LF; DGN 3102LFT; DGN 3202J; DGNC 3102C; DGNM 3202C; DGNM 3202J; DGR 3100JS-15D; DGR 3100JS-6D; DGR 3102C-15D; D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.1000
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6900
Maximum groove width0.1250
Minimum groove width0.1180
Overall length4.5000
Shank height0.5000
Shank length3.4000
Shank width diameter in1/2
StandardsISO 13399
Toolholder styleDGT
