Iscar

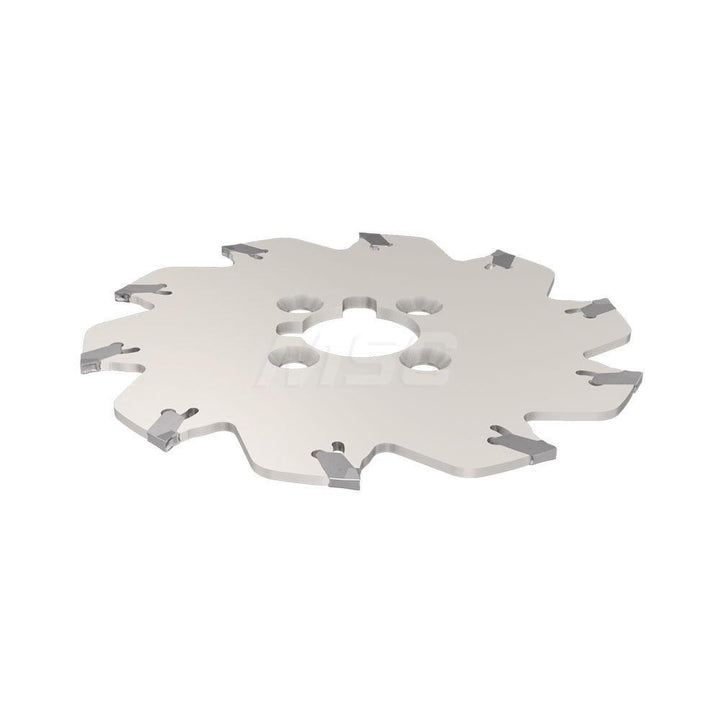

Indexable Milling Cutters - Iscar 2301368
MFR# 2301368Series Self-Grip (SGSA)
$877.67List $906.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301368 indexable milling cutters. Series Self-Grip (SGSA).
Specifications
Compatible insert styleGSFN
Connection typeArbor
Cutter body width0.0940
Cutter diameter3.1500
Hole diameter in1
Hub diameter1.5700
Insert holding methodSelf Clamping
Maximum cutting width0.1390
Maximum depth of cut0.6300
Maximum rpm1000
Minimum cutting width0.1060
Number of cutter inserts6
Number of teeth6
RadiusNo
Toolholder styleSGSF
Tool applicationMilling
