Iscar

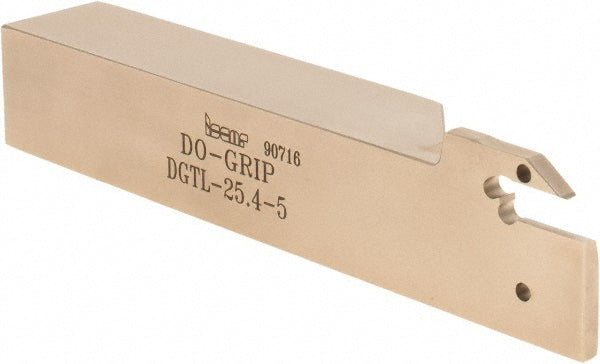

Indexable Grooving - Iscar 2301375
MFR# 2301375Series Do-Grip
$204.15List $210.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301375 indexable grooving. Series Do-Grip.
Specifications
Compatible insert size codeDGN-LF/LFT; DGN-MF; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-P; DGR-WP; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Complete insert compatibilityDGL 5003C-4D; DGL 5003J-4D; DGN 4803C; DGN 4803J; DGN 5003C; DGN 5003J; DGN 5003JT; DGN 5003UT; DGR 4800CS-4D; DGR 4800CS-8D; DGR 4800JS-4D; DGR 4800JS-8D; DGR 4803C-4D; DGR 4803C-8D; DGR 4803J-4D; DGR 4803J-8D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length1.1000
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.5000
Maximum groove width0.1970
Minimum groove width0.1890
Overall length6.0000
Shank height1.0000
Shank length4.9000
Shank width diameter in1
StandardsISO 13399
Toolholder styleDGT
