Iscar

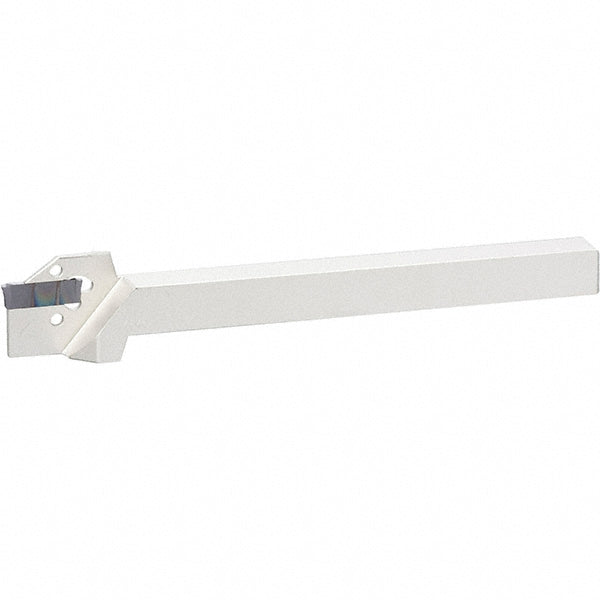

Indexable Grooving - Iscar 2301377
MFR# 2301377Series Do-Grip
$204.15List $210.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301377 indexable grooving. Series Do-Grip.
Specifications
Compatible insert size codeDGN-LF/LFT; DGN-MF; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-P; DGR-WP; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Complete insert compatibilityDGN 6008UT; GRIP 6005Y; GRIP 6008Y; GRIP 6030Y
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.1000
Insert compatibilityDGN 6008; GRIP 60..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.5000
Maximum groove width0.2360
Minimum groove width0.2360
Overall length6.0000
Shank height1.0000
Shank length4.9000
Shank width diameter in1
StandardsISO 13399
Toolholder styleDGT
