Iscar

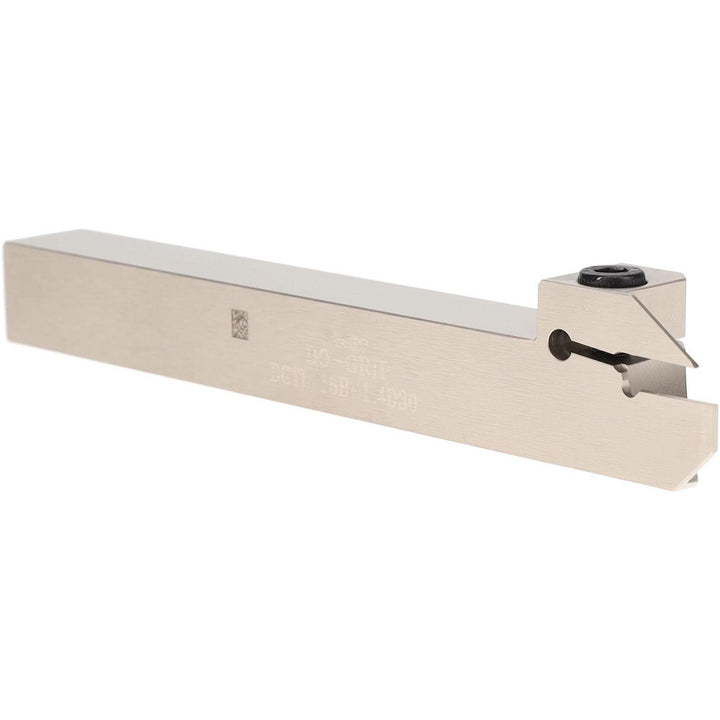

Indexable Grooving - Iscar 2301383
MFR# 2301383Series Do-Grip
$170.63List $176.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301383 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.6102
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 1400JS-15D; DGL 1402J-8D; DGN 1402J; DGR 1400JS-15D; DGR 1402J-8D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length1.1650
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.5906
Maximum groove width0.0551
Minimum groove width0.0551
Overall length5.5118
Shank height0.6299
Shank length4.3468
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleDGT
