Iscar

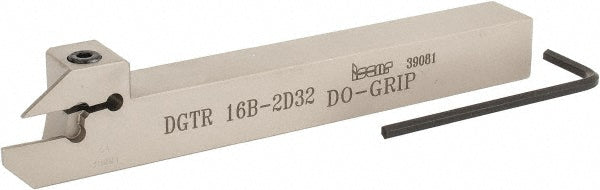

Indexable Grooving - Iscar 2301390
MFR# 2301390Series Do Grip
$170.63List $176.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301390 indexable grooving. Series Do Grip.
Specifications
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.2047
Insert compatibilityDG. 1..; DG. 2..
Insert holding methodClamp
Maximum depth of cut0.6299
Maximum groove width0.0984
Minimum groove width0.0750
Msc manufacturer numberDGTR/L 16B-2D32
Overall length5.5000
Shank height0.6299
Shank length4.2953
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleDGT
