Iscar

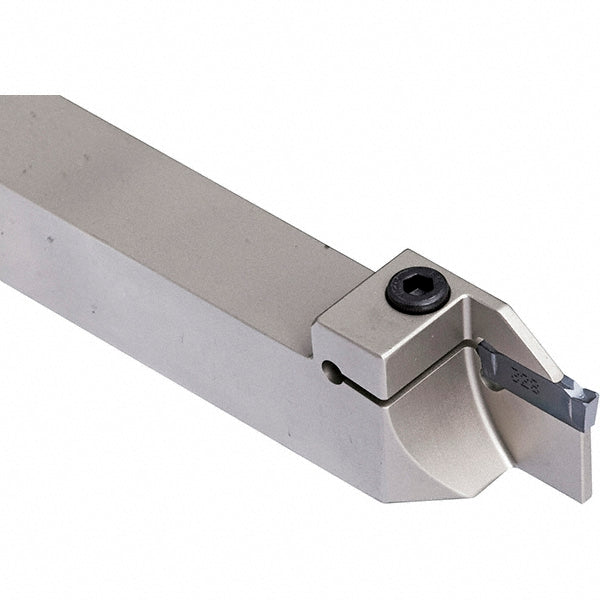

Indexable Grooving - Iscar 2301393
MFR# 2301393Series Do-Grip
$195.04List $201.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301393 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.7600
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-WP; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR/L-P; DGR/L-Z/ZS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Head length (mm)32.10
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6890
Maximum groove width0.0984
Minimum groove width0.0748
Overall length5.5118
Shank height0.7874
Shank length (mm)107.90
Shank width diameter0.7874
StandardsISO 13399
Toolholder styleDGT
