Iscar

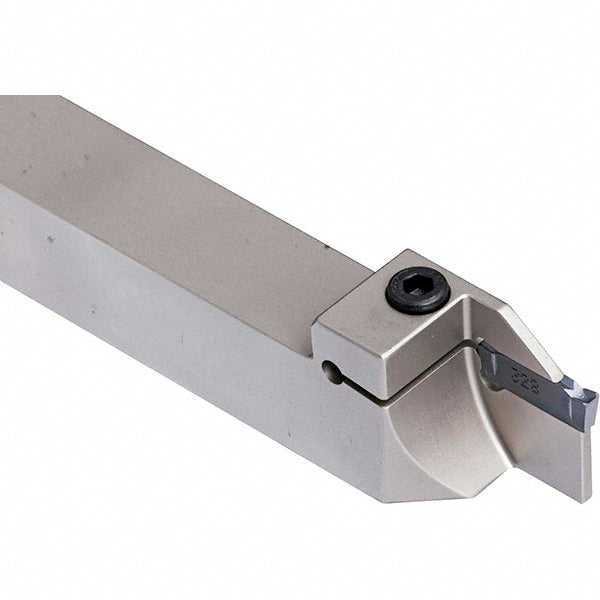

Indexable Grooving - Iscar 2301394
MFR# 2301394Series Do-Grip
$207.24List $214.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301394 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.9528
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGN 1900WP; DGN 2000P; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length (mm)29.60
Insert compatibilityDGN
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6890
Maximum groove width0.0984
Minimum groove width0.0748
Overall length5.5118
Shank height0.9843
Shank length (mm)110.40
Shank width diameter0.9843
StandardsISO 13399
Toolholder styleDGT
