Iscar

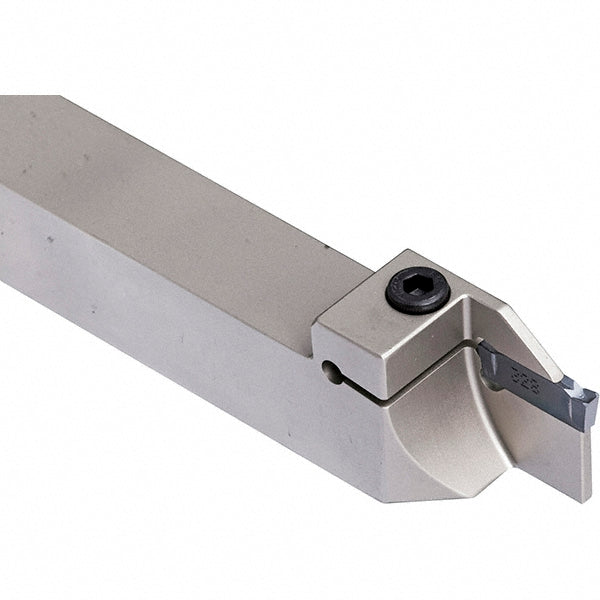

Indexable Grooving - Iscar 2301402
MFR# 2301402Series Do-Grip
$207.24List $214.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301402 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.9370
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGN 3000P; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3202J; DGNC 3102C; DGNM 3202C; DGNM 3202J
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length (mm)35.60
Insert compatibilityDGN
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.7874
Maximum groove width0.1252
Minimum groove width0.1181
Overall length5.5118
Shank height0.9843
Shank length (mm)104.40
Shank width diameter0.9843
StandardsISO 13399
Toolholder styleDGT
