Iscar

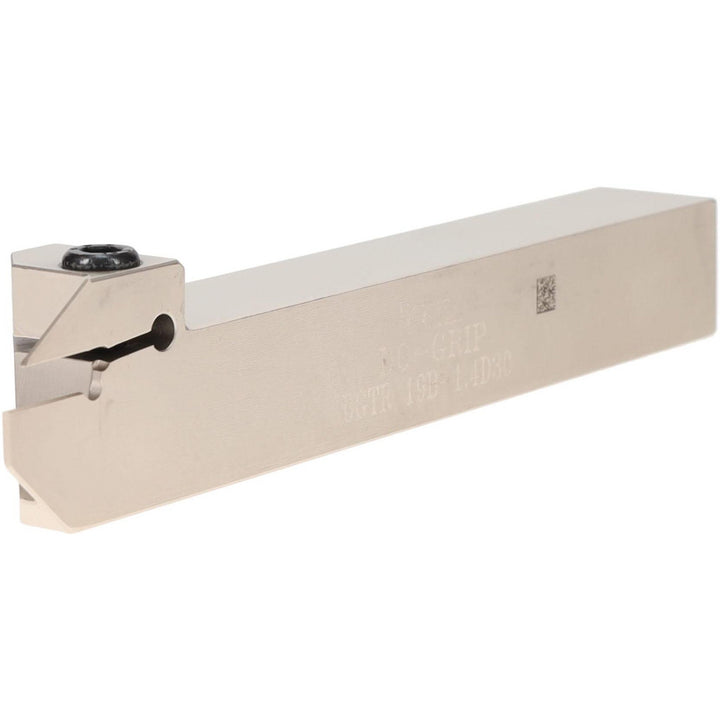

Indexable Grooving - Iscar 2301419
MFR# 2301419Series Do-Grip
$195.04List $201.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301419 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.7300
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 1400JS-15D; DGL 1402J-8D; DGN 1402J; DGR 1400JS-15D; DGR 1402J-8D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.3000
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.5910
Maximum groove width0.0550
Minimum groove width0.0550
Overall length5.5000
Shank height0.7500
Shank length4.2000
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleDGT
