Iscar

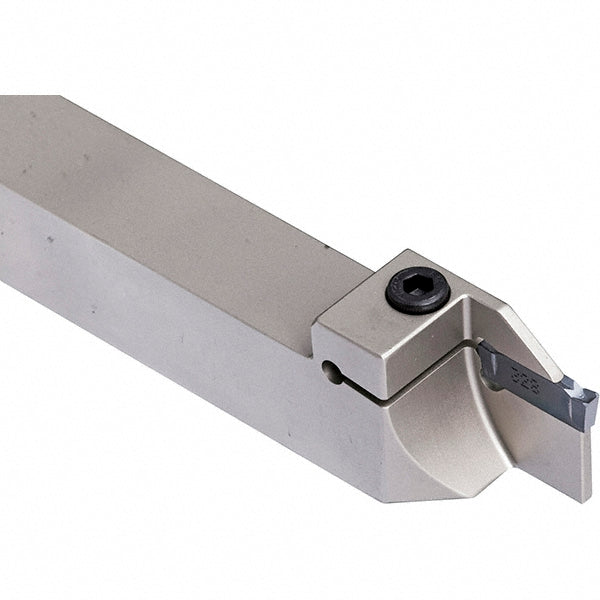

Indexable Grooving - Iscar 2301421
MFR# 2301421Series Do-Grip
$165.37List $167.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301421 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.3400
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGN 1900WP; DGN 2000P; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.3000
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.5910
Maximum groove width0.0980
Minimum groove width0.0750
Overall length5.5000
Shank height0.3750
Shank length4.2000
Shank width diameter in3/8
StandardsISO 13399
Toolholder styleDGT
