Iscar

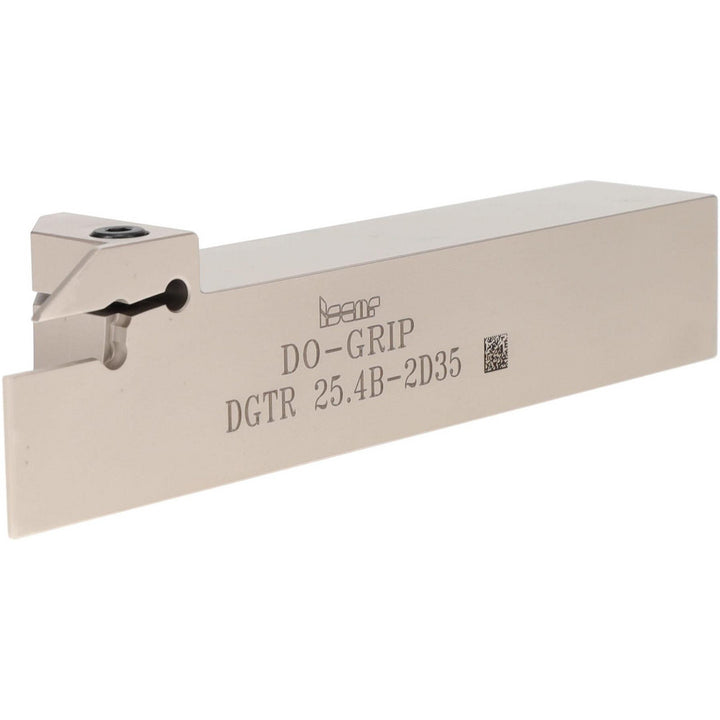

Indexable Grooving - Iscar 2301427
MFR# 2301427Series Do-Grip
$207.24List $214.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301427 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.9700
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGN 1900WP; DGN 2000P; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.3000
Insert compatibilityDGN
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6890
Maximum groove width0.0980
Minimum groove width0.0750
Overall length5.5000
Shank height1.0000
Shank length4.2000
Shank width diameter in1
StandardsISO 13399
Toolholder styleDGT
