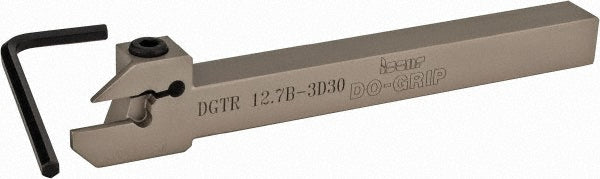

Indexable Grooving - Iscar 2301429
MFR# 2301429Cat# DGTR 12.7B-3D30Series Do-Grip
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301429 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.4500
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.1700
Insert compatibilityDG..
Insert holding methodClamp
Insert seat size0.1
Internal or externalExternal
Manufacturers catalog numberDGTR 12.7B-3D30
Maximum depth of cut0.5910
Maximum groove width0.1250
Minimum groove width0.1180
Overall length5.5000
Shank height0.5000
Shank length4.3300
Shank width diameter in1/2
StandardsISO 13399
Toolholder styleDGT
