Iscar

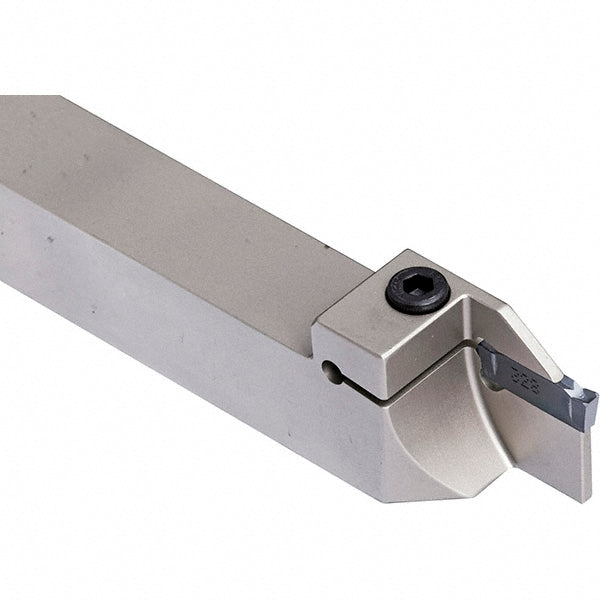

Indexable Grooving - Iscar 2301430
MFR# 2301430Series Do-Grip
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301430 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.4500
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGN 3000P; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3202J; DGNC 3102C; DGNM 3202C; DGNM 3202J
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length1.2000
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.5910
Maximum groove width0.1250
Minimum groove width0.1180
Overall length5.5000
Shank height0.5000
Shank length4.3000
Shank width diameter in1/2
StandardsISO 13399
Toolholder styleDGT
