Iscar

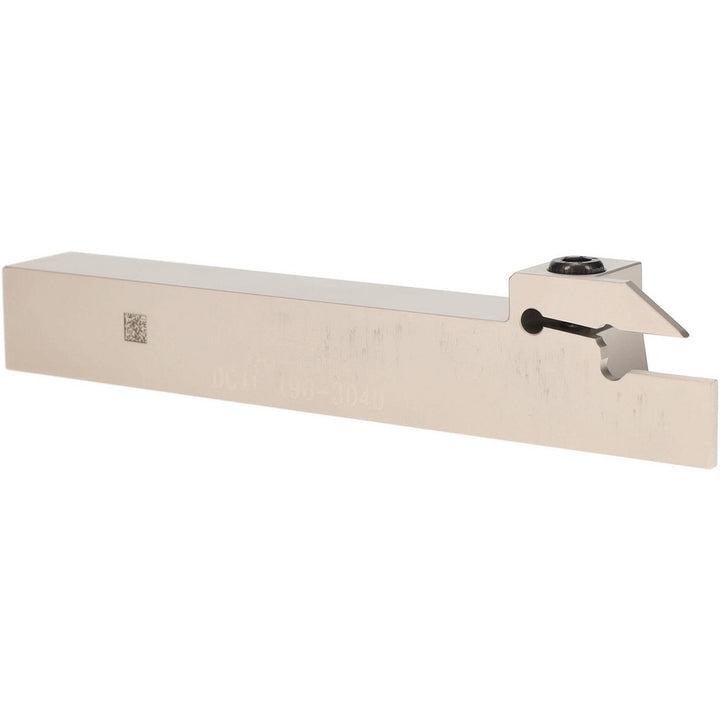

Indexable Grooving - Iscar 2301432
MFR# 2301432Series Do Grip
$195.04List $201.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301432 indexable grooving. Series Do Grip.
Specifications
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length1.4000
Insert compatibilityDG. 1..; DG. 3..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.7870
Maximum groove width0.1250
Minimum groove width0.1180
Overall length5.5000
Shank height0.7500
Shank length4.1000
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleDGT
